Test an Air Gap Installation with Compatibility Matrix

This tutorial demonstrates how to test an air gap installation of a Helm chart using Replicated Embedded Cluster and Replicated Compatiblity Matrix (CMX).

Introduction

Software vendors can use Replicated's Compatibility Matrix (CMX) to quickly provision clusters and VMs that simulate air-gapped environments. CMX also has network reporting features that allow vendors to generate reports on network activity for their application, such as recording requests to domains that are not on an allowlist. These features help vendors that distribute applications into customer environments with little or no outbound internet access to more easily test their releases. For more information about using CMX to test releases in air-gapped environments, see Test in Air Gap Environments.

In this tutorial, you will do the following to learn more about the CMX network policy and reporting features:

Download the Helm chart and release manifests for a sample NGINX application
Create a release in the Replicated Platform
Build an .airgap bundle for the release
Create a VM with CMX, and set the VM's network policy to airgap to simulate an air-gapped environment
Follow the Embedded Cluster air gap installation instructions to download the air gap bundle, transfer the bundle to the air-gapped VM, and then install with Embedded Cluster
Make an outbound request from the NGINX app, and view the attempt in the CMX network report

Set Up Your Environment

Before you begin, do the following to set up your environment:

Install the Helm CLI, which is the tool for interacting with Helm and managing Helm charts. See Install Helm.
Ensure that you have CMX credits. You can request credits by going to Compatibility Matrix > Request more credits in the Vendor Portal. For more information about CMX credits, see Billing and Credits.

note
If you are new to the Replicated platform, you might be eligible for $100 in free CMX credits. To request your free credits, reach out to our sales team at https://www.replicated.com/contact and note in the comments that you are completing a Replicated tutorial.
Ensure that you have an SSH key in your GitHub account. Then, add your GitHub username to your Vendor Portal Account Settings. This will provide SSH access to VMs that you create with CMX. For more information, see Set Up SSH Access in Create VMs.

Tutorial

Create an Application

On your local machine, install the Replicated CLI:

MacOS

brew install replicatedhq/replicated/cli

Linux / Windows Subsystem for Linux (WSL)

version=$(curl -s https://api.github.com/repos/replicatedhq/replicated/releases/latest \
   | grep -m1 -Po '"tag_name":\s*"v\K[^"]+')
curl -Ls \
   "https://github.com/replicatedhq/replicated/releases/download/v${version}/replicated_${version}_linux_amd64.tar.gz" \
   -o replicated.tar.gz
tar xf replicated.tar.gz replicated && rm replicated.tar.gz
mv replicated /usr/local/bin/replicated

For more information and additional installation options, see Install the Replicated CLI.

Authorize the Replicated CLI:
```
replicated login
```
In the browser window that opens, follow the prompt to log in to your Vendor Portal account and authorize the CLI.
Create an application named NGINX:
```
replicated app create "NGINX"
```
Set the REPLICATED_APP environment variable to the application that you created:
```
export REPLICATED_APP=APP_SLUG
```
Where APP_SLUG is the unique application slug provided in the output of the app create command.

Setting the REPLICATED_APP environment variable allows you to interact with the application using the Replicated CLI without needing to use the --app flag with every command.

Create a Release

Run the following command to download a tarball containing the release files:

curl -O --create-dirs --output-dir tutorial-airgap https://docs.replicated.com/nginx-0.1.0-release.tar.gz

Untar:

cd tutorial-airgap

tar -xzf nginx-0.1.0-release.tar.gz && rm nginx-0.1.0-release.tar.gz

View the contents of the manifests directory:
```
ls manifests
```
```
ec-config.yaml      nginx-0.1.0.tgz          nginx.yaml             replicated-app.yaml
```
The contents include the NGINX Helm chart archive (nginx-0.1.0.tgz) and some Replicated manifests that are used to define different aspects of the installation experience for the application.
Lint the YAML files in the manifests directory:
```
replicated release lint --yaml-dir manifests
```
note
You can ignore info or warn messages for the purpose of this tutorial.

Create a release and promote it to the Unstable channel:

replicated release create --yaml-dir manifests --promote Unstable

Example output:

• Reading manifests from . ✓
• Creating Release ✓
   • SEQUENCE: 1
• Promoting ✓
   • Channel 2kvjwEj4uBaCMoTigW5xty1iiw6 successfully set to release 1

Build the Air Gap Bundle

Log in to the Vendor Portal.

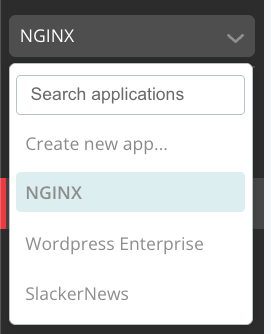

In the application drop down, select the NGINX application that you created.

View a larger version of this image
Go to Channels.
On the Unstable channel card, click the gear icon in the top right corner to open the channel settings. In the Edit channel settings dialog, ensure that Enable new air gap bundle format is enabled. Click Save to close the dialog.
In the Latest release section of the Unstable channel card, click Release history.
On the Release History page, find the release sequence that you just promoted.

View a larger version of this image

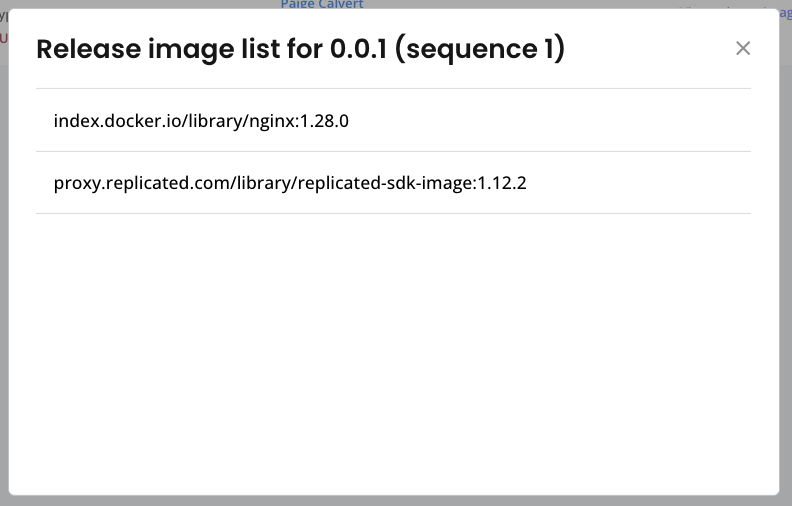

(Optional) Click View release image list to see the images that Replicated will include in the air gap bundle. This release includes an NGINX image and the Replicated SDK image, as shown below:

View a larger version of this image

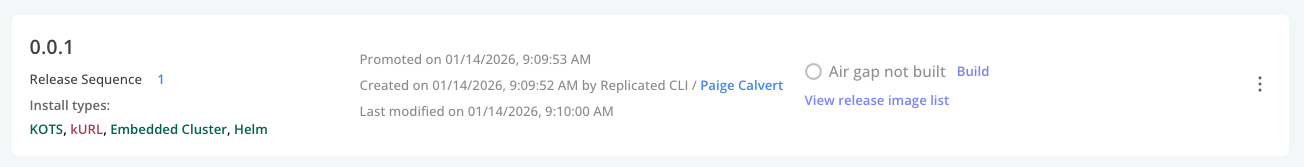

Next to "Air gap not built", click Build.

Wait a few minutes for the air gap bundle to build.

note
You might need to refresh the page to see the latest air gap bundle build status.

After the air gap bundle is done building, continue to Create a Customer without downloading the bundle. You will download the bundle and other required installation assets as part of a later step.

Create a Customer

Click Customers > Create customer.

The Create a new customer page opens.
For Customer name, enter a name for the customer. For example, Nitflex.
For Assigned Channel, select Unstable. This allows the customer to install releases promoted to the Unstable channel.
For Customer type, select Development.
For Install types, enable Embedded Cluster (current generation product). Optionally, disable any other install types that were selected by default.
For Additional install options, enable Air Gap Installation Option (Replicated Installers only).
Click Save Changes.

Download the Installation Assets

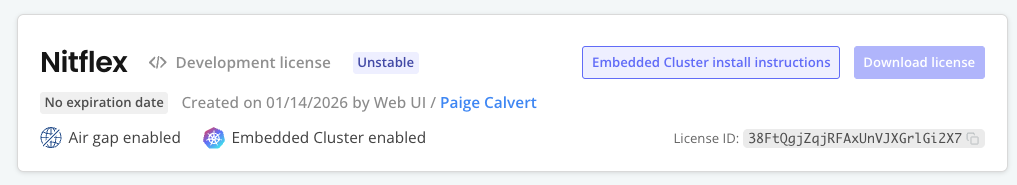

At the top of the page for the customer you just created, click Embedded Cluster install instructions.

View a larger version of this image

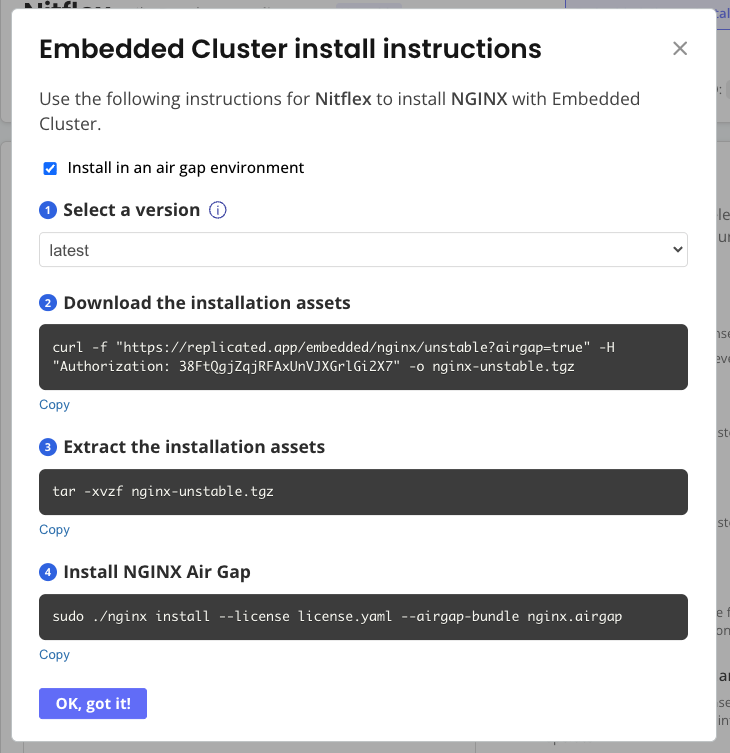

In the Embedded Cluster install instructions dialog, verify that the Install in an air gap environment checkbox is enabled. This checkbox is automatically enabled when the customer license has the air gap install option and an air gap bundle exists for the latest release on the channel.

View a larger version of this image
On your command prompt, run the first command in the dialog to download the Embedded Cluster air gap installation assets to your local machine.

It can take a few minutes to download the installation assets.

Create a VM with CMX

In the Vendor Portal, go to Compatibility Matrix.
Click Create > Create VM.
On the Create a Virtual Machine page, complete the following fields:
- OS distribution: Ubuntu
- Version: 24.04
- (Optional) TTL: Optionally increase the TTL for the VM if you want more time to test the installation.
Leave the default values for the remaining fields.
Click Create VM.
Open the dot menu for the target VM and click Edit VM.

View a larger version of this image
Under Ingress & Ports, for Add DNS record, click Add to create a DNS record with the default Target Port (30000) and the default Protocols (http and https).
Add another DNS record with a Target Port of 80. Use the default http and https protocols for this DNS record as well.

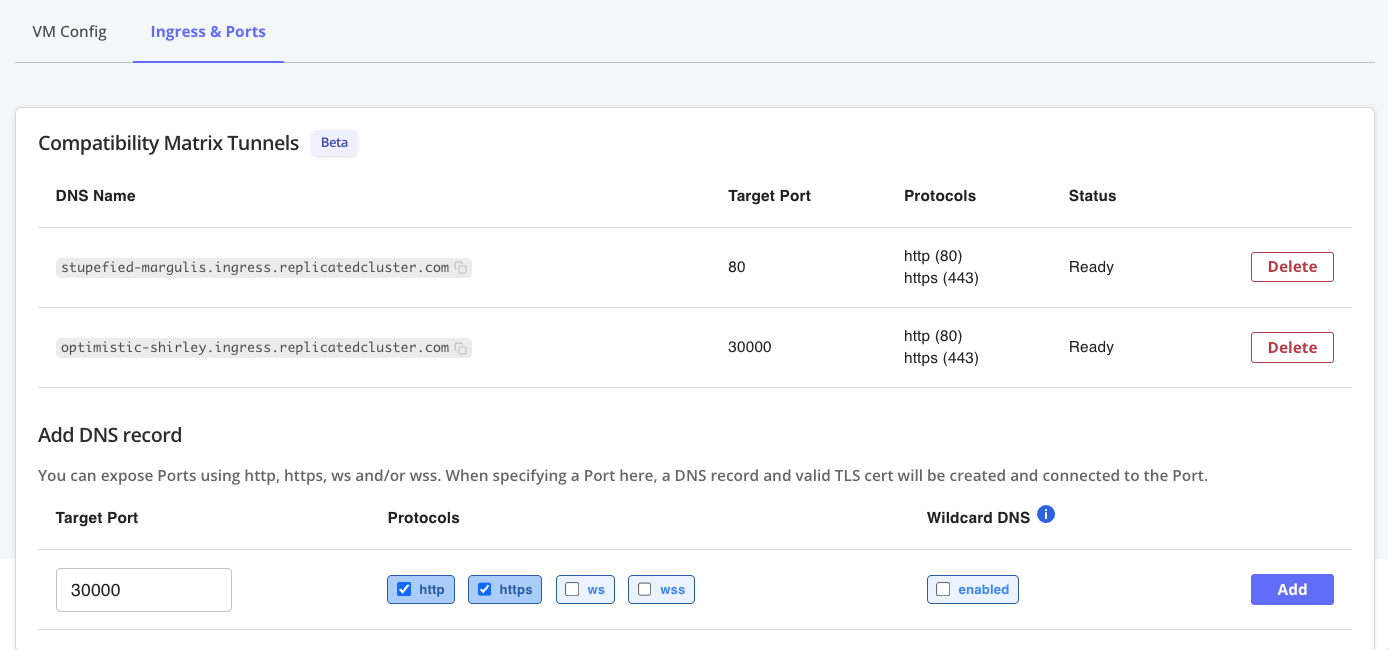

The following shows an example of both of these DNS records added to a VM:

View a larger version of this image
For the DNS records that you created, under DNS Name, copy both of the URLs and save them somewhere on your local machine. You will access the Admin Console and the NGINX app at these URLs after you install.

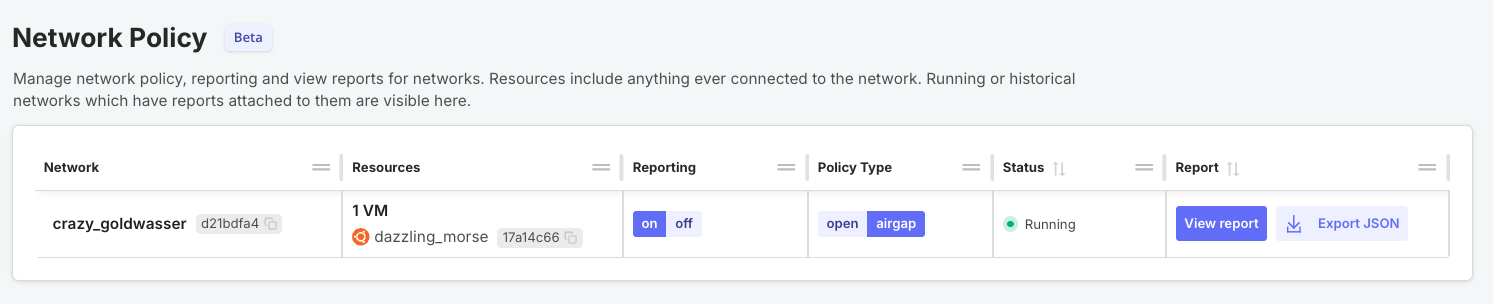

In the panel on the left side of the screen, click Network Policy.

View a larger version of this image
On the Network Policy page, for the network where your VM is connected, set Policy Type to airgap. This prevents outbound internet requests from the VM, allowing you to simulate an air-gapped installation environment.
Then, toggle Reporting for the network to on. This allows you to view a network report for the air-gapped VM, which includes details about all connection attempts and DNS queries.

SSH Onto the VM and Transfer the Installation Assets

In the panel on the left side of the screen, click Overview to return to the Compatibility Matrix Overview page.
When your VM is listed as "Running", copy the SSH command provided.

View a larger version of this image
On your command prompt, run the SSH command.
If you are prompted to add the fingerprint for replicatedvm.com, type yes and press Enter.
If prompted, provide the passphrase for the SSH key in your linked GitHub account.
Open a new command prompt window.
In the new window, run the following command to get the ID of your VM:
```
replicated vm ls
```
Get the SCP endpoint for the VM:
```
replicated vm scp-endpoint VM_ID
```
Where VM_ID is the ID that you got in the previous step.

Example output:
```
scp://[email protected]:43663
```
Transfer the .tgz installation assets that you downloaded as part of Download the Installation Assets to your VM using the SCP endpoint:
```
scp PATH_TO_TGZ SCP_ENDPOINT
```
Where:
- PATH_TO_TGZ is the local path to the .tgz installation assets that you downloaded.
- SCP_ENDPOINT is the SCP endpoint with the format scp://[email protected]:43663 that you copied in the previous step .
Example:
```
scp nginx-unstable.tgz scp://[email protected]:43663
```
When prompted, type yes to connect to the host.
When prompted, type your passphrase for your SSH key and press Enter.

Wait a few minutes for the .tgz to transfer to your VM.

Extract the Installation Assets and Install NGINX

In the Vendor Portal, go back to the customer's page (Applications > NGINX > Customers > Nitflex) and reopen the Embedded cluster install instructions dialog.
Copy the command for the Extract the installation assets step and run it on your VM to extract the .tgz that you transferred.

Example output:
```
nginx-sculpin
license.yaml
nginx-sculpin.airgap
```
Copy the install command and run it on your VM to install NGINX with Embedded Cluster.
When prompted, set a password for accessing the Admin Console. Remember the password that you set; you will use it to log in to the Admin Console in a later step.

The installation takes a few minutes to complete.
In a browser, go to the URL for the Admin Console.

note
You generated a URL for the Admin Console as part of Create a VM with CMX. You can find the URL by going to Compatibility Matrix > Edit VM > Ingress & Ports in the Vendor Portal and copying the URL for the DNS record with a target port of 30000.
Log in to the Admin Console using the password that you set during installation.
In the Admin Console installation wizard, click Continue to skip the cluster configuration options.

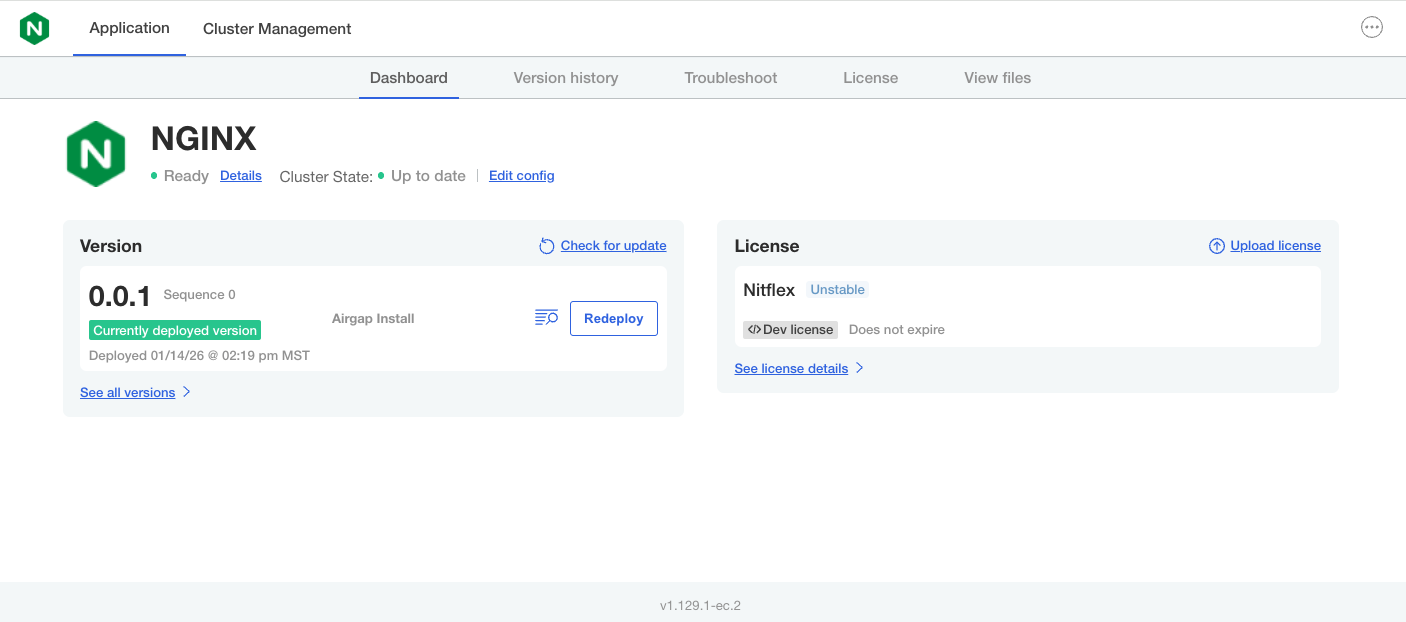

The Admin Console landing page opens.
On the Admin Console landing page, click Deploy to install NGINX.

You can watch the status of the NGINX app change from Missing to Unavailable to Ready:

View a larger version of this image
After the installation completes, run the following command on your VM to open a shell where you can interact with the embedded cluster using kubectl:
```
sudo ./APP_SLUG shell
```
Where APP_SLUG is the slug for your application.

Verify that the NGINX pod is running:

kubectl get pods --namespace kotsadm

Example output:

kotsadm-7c6457b99c-gjfz6             1/1     Running   0              37s
kotsadm-rqlite-0                     1/1     Running   0              2m1s
kurl-proxy-kotsadm-b9fdfdb7f-sxk7w   1/1     Running   1              2m1s
nginx-6d58d68945-nbbzx               1/1     Running   0              29s
replicated-6798d88b48-b6575          1/1     Running   0              29s

By default, Embedded Cluster deploys into the kotsadm namespace. In the kostadm namespace, you can see the following pods:

kotsadm and kotsadm-rqlite pods for the Replicated Admin Console
kurl-proxy-kotadm pod for the image registry that is automatically deployed in air gap installations with Embedded Cluster
nginx pod for the NGINX application
replicated pod for the Replicated SDK

Access the NGINX App and View the Network Report

On your command prompt, get the ID for the air gap network where your VM is connected:
```
replicated network ls
```
Run the following command to watch the network report:
```
replicated network report NETWORK_ID --watch
```
Where NETWORK_ID is the ID of the network.
In a browser, go to the URL for the NGINX app.

note
You generated a URL for NGINX as part of Create a VM with CMX. You can find the URL by going to Compatibility Matrix > Edit VM > Ingress & Ports in the Vendor Portal and copying the URL for the DNS record with a target port of 80.

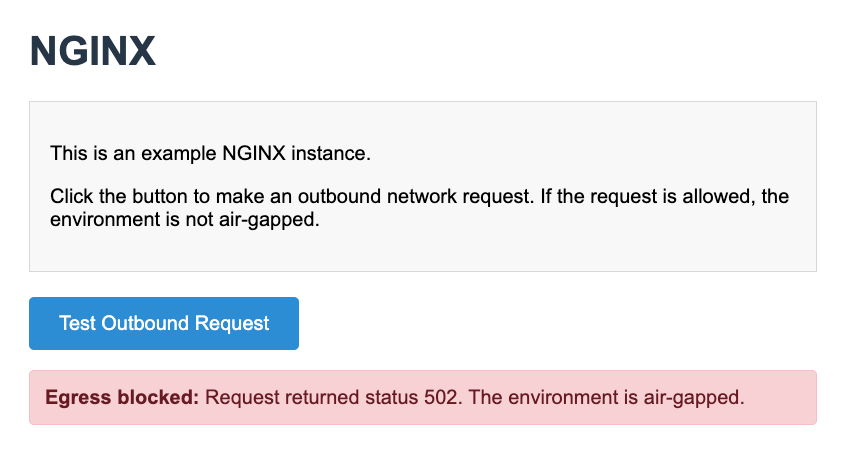

On the NGINX app webpage, click Test Outbound Request to make an outbound network request to http://httpbin.org. As shown below, the webpage displays an Egress blocked message because the airgap network policy for the VM does not allow outbound requests.

View a larger version of this image

On the command prompt where you are watching network activity for the VM, note that you can see a network event similar to the following, which records the request to httpbin.org:

{"timestamp":"2026-01-14T21:31:32.023130266Z","srcIp":"10.244.26.14","dstIp":"1.1.1.1","srcPort":59247,"dstPort":53,"proto":"UDP","comm":"nginx","pid":8641,"likelyService":"dns","dnsQueryName":"httpbin.org"}

In the Vendor Portal, go to Compatibility Matrix > Network Policy and click View report for the network where your VM is connected.
In the Network Policy Report table, scroll to the right to see information about the request to httpbin.org, including the Destination IP, DNS Query Name, and more.
(Optional) On the Compatibility Matrix > Network Policy page, change the Policy type to open to allow outbound requests on your VM. Go back to the NGINX app in your browser and click Test Outbound Request to see that the outbound request is now successful:

View a larger version of this image

note

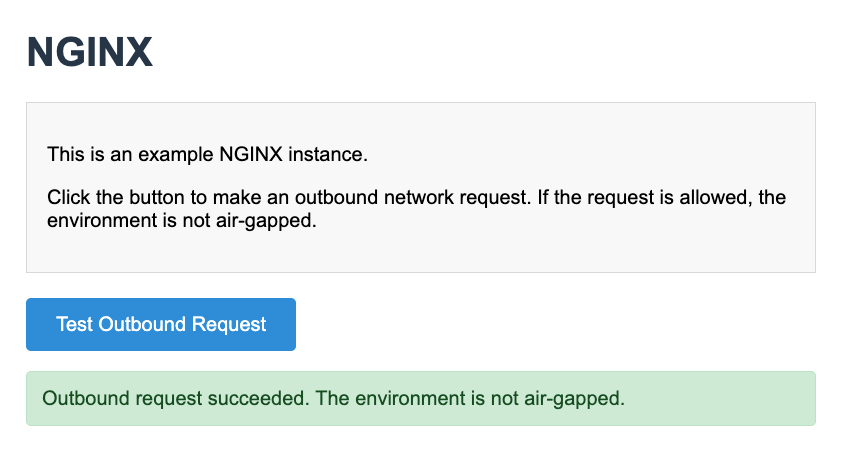

If the outbound request fails, wait a moment for the network to open and then try again.

Clean Up

After you are done testing the air gap installation of NGINX, delete the VM:
```
replicated vm rm VM_ID
```
Where VM_ID is the ID of the VM. You can run replicated vm ls to get the ID.
After the VM is terminated, go to Compatibility Matrix > Network Policy and click View report for the network where the VM was connected.
Under Domain Names Requested, you can see the summary of the domains requested on the network. Note that the httpbin.org domain is listed in the table along with the number of requests made.

Summary

Congratulations! As part of this tutorial, you:

Performed an air gap installation with Embedded Cluster in a VM
Used the Compatibility Matrix network policy feature to simulate an air-gapped environment
Used the Compatibility Matrix network reporting feature to track outbound network requests made by an application

For more information about testing with Compatibility Matrix in air-gapped environments, see Test in Air Gap Environments.

For more information about installing in air-gapped environments with Embedded Cluster, see Air Gap Installation with Embedded Cluster.
