Using Image Tags and Digests

This topic describes using image tags and digests with your application images. It includes information about when image tags and digests are supported, and how to enable support for image digests in air gap bundles.

Support for Image Tags and Digests

The following table describes the use cases in which image tags and digests are supported:

InstallationSupport for Image TagsSupport for Image Digests
OnlineSupported by defaultSupported by default
Air GapSupported by default for Replicated KOTS installations

Supported for applications on KOTS v1.82.0 and later when the Enable new air gap bundle format toggle is enabled on the channel.

For more information, see Using Image Digests in Air Gap Installations below.

note

You can use image tags and image digests together in any case where both are supported.

Using Image Digests in Air Gap Installations

For applications installed with KOTS v1.82.0 or later, you can enable a format for air gap bundles that supports the use of image digests. This air gap bundle format also ensures that identical image layers are not duplicated, resulting in a smaller air gap bundle size.

You can enable or disable this air gap bundle format using the Enable new air gap bundle format toggle in the settings for any channel in the Vendor Portal. The Enable new air gap bundle format toggle is enabled by default.

When you enable Enable new air gap bundle format on a channel, all air gap bundles that you build or rebuild on that channel use the updated air gap bundle format.

If users on a version of KOTS earlier than v1.82.0 attempt to install or upgrade an application with an air gap bundle that uses the Enable new air gap bundle format format, then the Admin Console displays an error message when they attempt to upload the bundle.

To enable the new air gap bundle format on a channel:

  1. In the Replicated Vendor Portal, go to the Channels page and click the edit icon in the top right of the channel where you want to use the new air gap bundle format.

  2. Enable the Enable new air gap bundle format toggle.

  3. (Recommended) To prevent users on a version of KOTS earlier than v1.82.0 from attempting to upgrade with an air gap bundle that uses the new air gap bundle format, set minKotsVersion to "1.82.0" in the Application custom resource manifest file.

    minKotsVersion defines the minimum version of KOTS required by the application release. Including minKotsVersion displays a warning in the Admin Console when users attempt to install or upgrade the application if they are not on the specified minimum version or later. For more information, see Setting Minimum and Target Versions for KOTS.

    Example:

    apiVersion: kots.io/v1beta1
    kind: Application
    metadata:
    name: my-application
    spec:
    ...
    minKotsVersion: "1.82.0"
    ...
  4. Test your changes:

    1. Save and promote the release to a development environment.

    2. On the channel where you enabled Enable new air gap bundle format, click Release history. On the Release History page, click Build next to the latest release to create an air gap bundle with the new format.

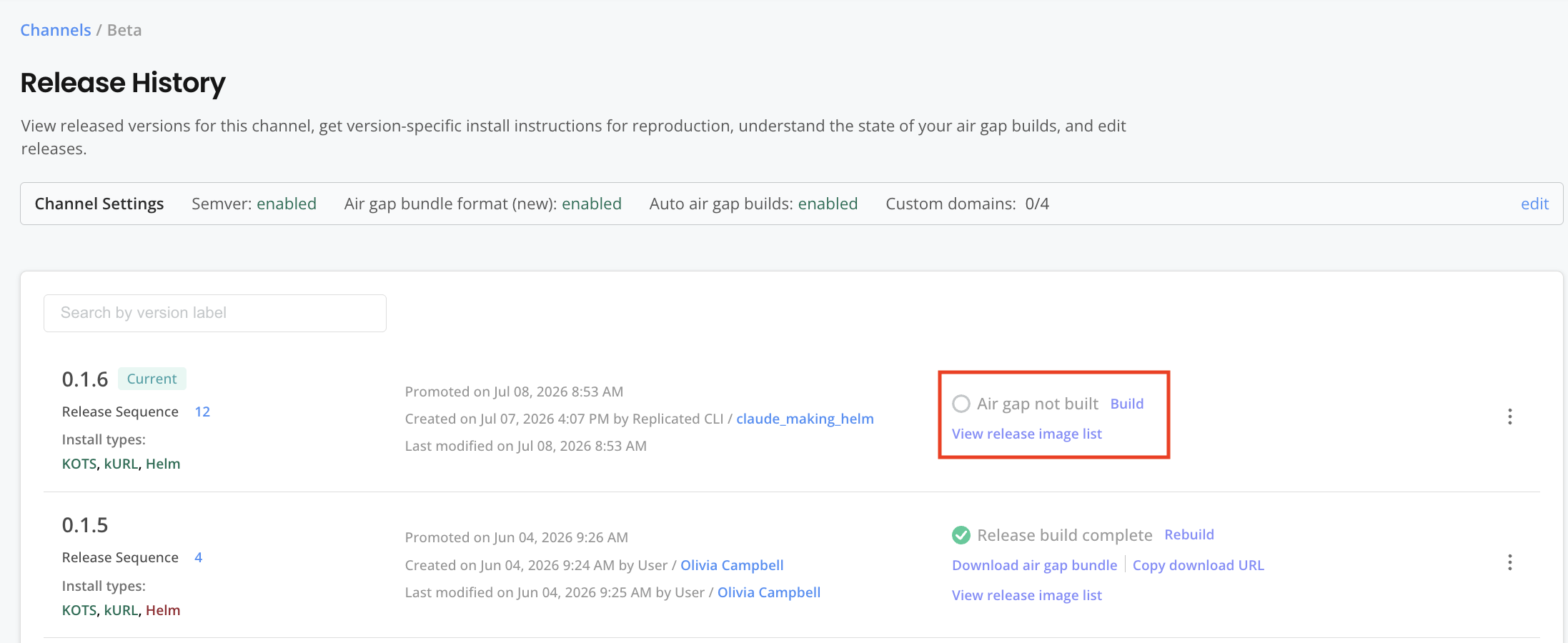

      Vendor portal release history page

    3. Click Download Airgap Bundle.

    4. Install or upgrade the application with version 1.82.0 or later of the Admin Console or the KOTS CLI. Upload the new air gap bundle to confirm that the installation or upgrade completes successfully.
